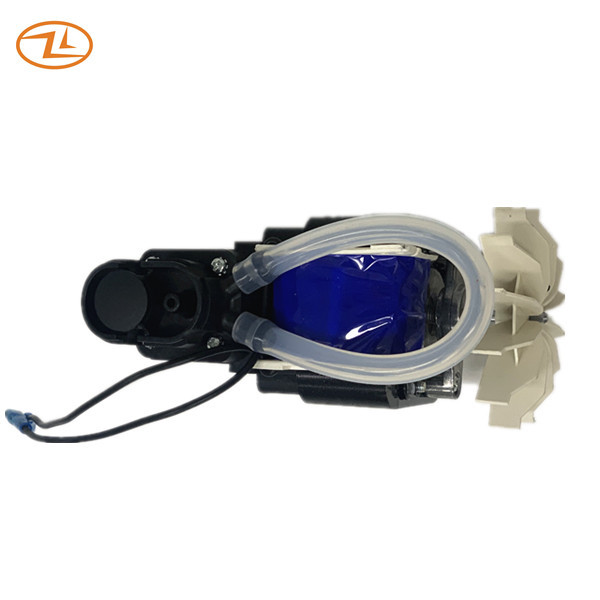

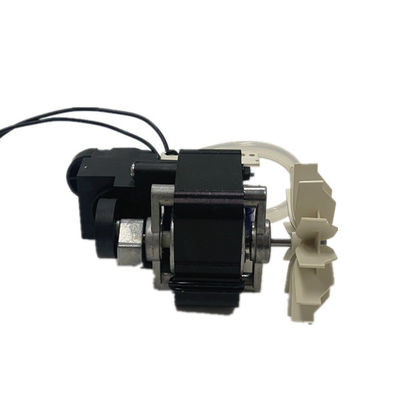

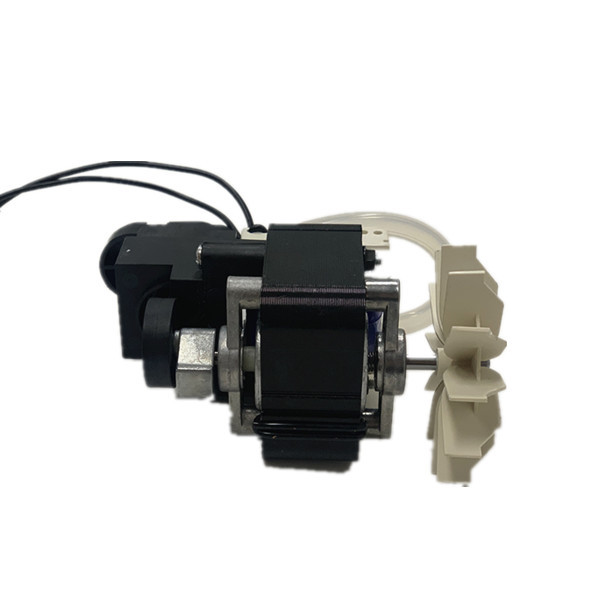

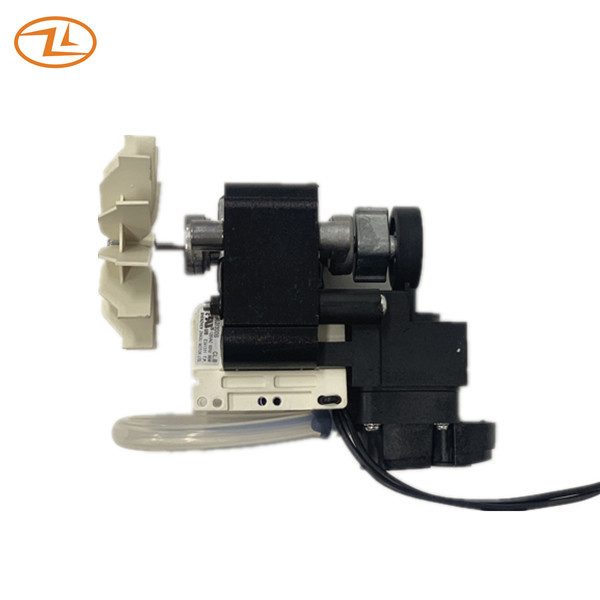

30mm Nebulizer Motor Air Compressor Pump 120V 60HZ With UL Certification
Specification:
| Rated voltage/frequency V/HZ | 120V 60HZ |
| Rated current A | 1.20A max |
| Rated input power W | 70W max |
| Starting voltage V | 114V max |
| Rated speed RPM | 2900RPM min |
| Working air pressure PSI | 10PSI min |
| Working flow rate L/M | 6.5L/M min |
| Max pressure PSI | 35PSI min |
| Max flow rate L/M | 15 L/M min |
Construction:
| Insulation Class | CL.B |
| Rotation Direction | CCW (view from pump side) |
| Protection | Thermal protector 130℃ |
| Piston bearing | Ball bearing |
| Nozzle direction | Fixed with tubes |
| Cooling fan size | Φ75mm |
Drawing:
Application: Air compressor nebulizer
